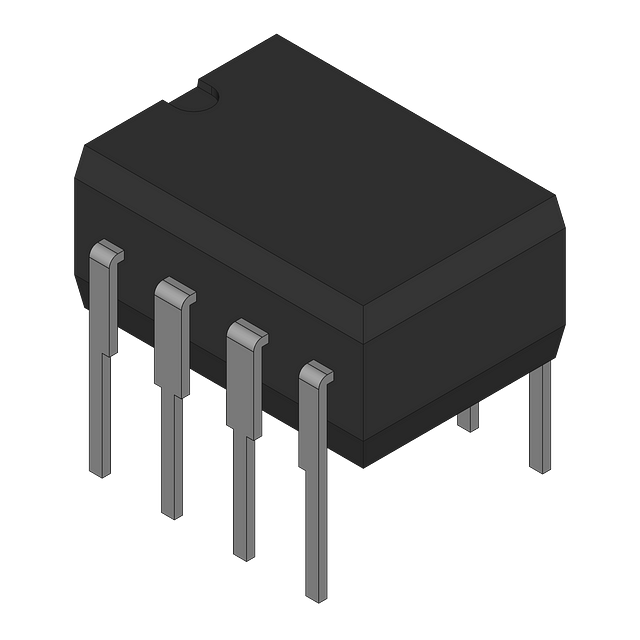

The CoolSET F3 Flyback DC/DC controller is a 15V device available in a RoHS compliant, plastic DIP-8 package. Operating over a temperature range of -25°C to 130°C, it can handle a maximum power dissipation of 68W. The device is suitable for use in applications with a maximum duty cycle of 77%. It is compliant with RoHS regulations and is available in quantities of 2000 per package, packaged in rail/Tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon ICE3A2565 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Duty Cycle | 77% |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 68W |
| Operating Supply Voltage | 21V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CoolSET®F3 |
| Topology | Flyback |
| Voltage | 15V |
| RoHS | Compliant |
