Infineon
ICE3AS03LJGXUMA1
Switching Controller, Current-mode, 113kHz Switching Freq-Max, BICMOS, PDSO8, GREEN, PLASTIC, SOP-8
PackageSOIC
Quick Jump:
Technical Specifications
Infineon ICE3AS03LJGXUMA1 technical specifications.
General
Package/Case
SOIC
Duty Cycle
75%
Fall Time
55ns
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Not Halogen Free
Isolation
Isolated
Lead Free
Lead Free
Max Duty Cycle
80%
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Supply Voltage
25V
Min Supply Voltage
9.8V
Number of Outputs
1
Operating Supply Current
2.5mA
Output Current
390mA
Output Voltage
10V
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Infineon ICE3AS03LJGXUMA1 Datasheet
Download the complete datasheet for Infineon ICE3AS03LJGXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

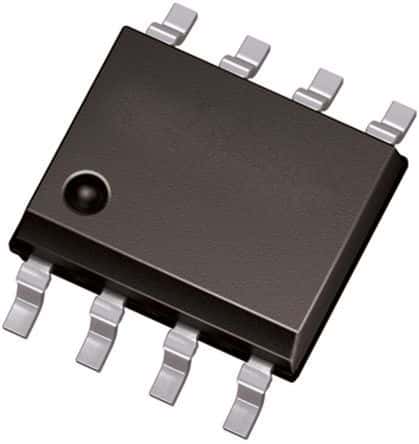

Product Images
