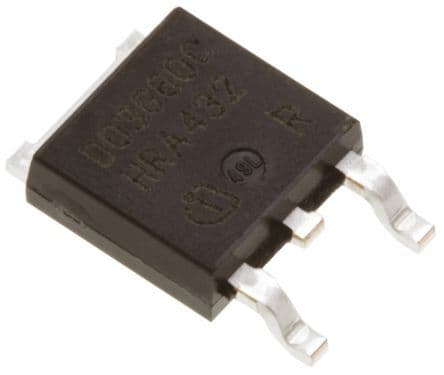

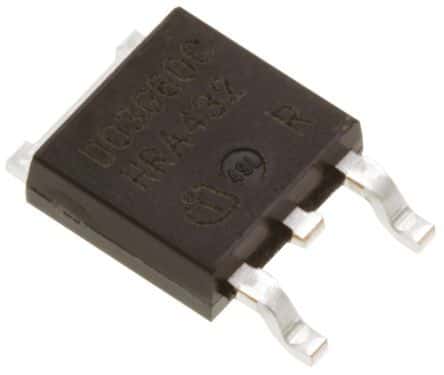

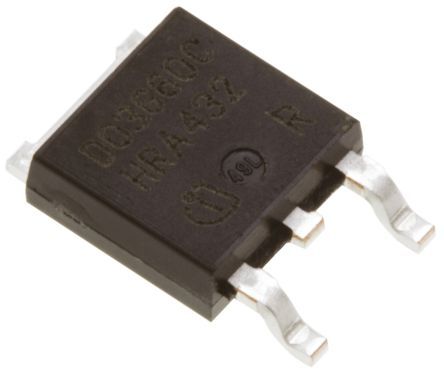

Silicon Carbide Schottky Rectifier Diode, 3A average rectified current, 600V repetitive reverse voltage. Features TO-252-3 package, 175°C max operating temperature, and 38W max power dissipation. Offers 0ns reverse recovery time and 15uA max reverse leakage current. Lead-free and RoHS compliant.
Sign in to ask questions about the Infineon IDD03SG60C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IDD03SG60C technical specifications.
| Average Rectified Current | 3A |
| Package/Case | TO-252-3 |
| Forward Current | 3A |
| Height | 2.41mm |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 38W |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 15uA |
| Max Reverse Leakage Current | 15uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 11.5A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 11.5A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 0ns |
| RoHS Compliant | Yes |
| Series | thinQ!™ |
| Width | 6.22mm |
| RoHS | Compliant |
