Infineon IDP30E60XKSA1 technical specifications.
| Average Rectified Current | 52.3A |

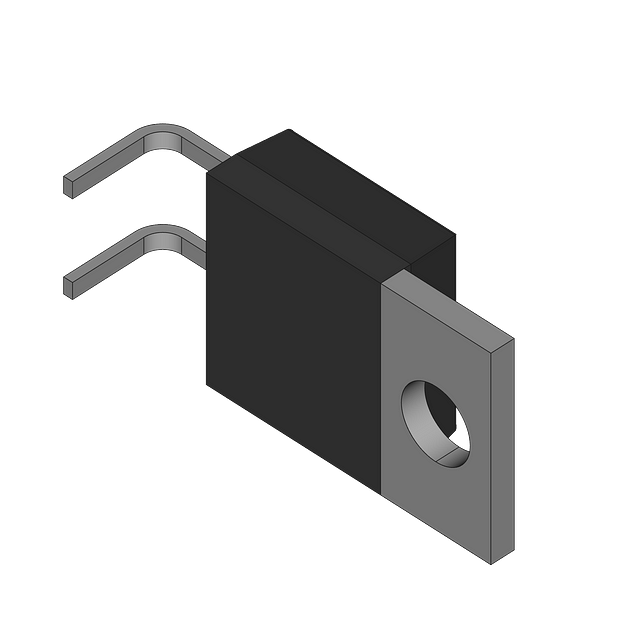

| Package/Case | TO-220-2 |
| Element Configuration | Single |
| Forward Current | 52.3A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 117A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 50uA |
| Max Reverse Voltage (DC) | 600V |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 117A |
| Power Dissipation | 142.9W |
| Radiation Hardening | No |
| Reverse Recovery Time | 126ns |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Infineon IDP30E60XKSA1 to view detailed technical specifications.
