Technical Specifications
Infineon IFX1117GSV33 technical specifications.
General
| Package/Case | TO-261-4 |
| Dropout Voltage | 1.3V |
| Lead Free | Lead Free |
| Min Current Limit | 1.1A |
| Max Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Quiescent Current | 10mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IFX1117GSV33 Datasheet
Download the complete datasheet for Infineon IFX1117GSV33 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

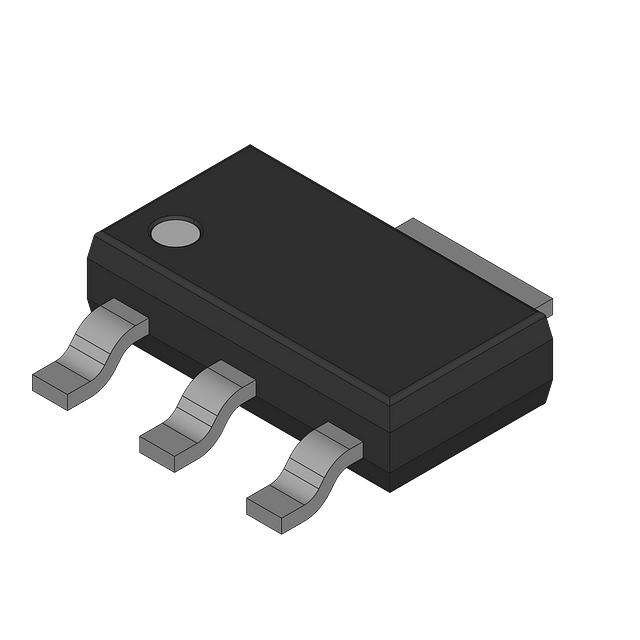

Product Images
