3.3V positive fixed output linear voltage regulator, surface mount, TO-261-4 package. Features 1A maximum output current, 1.2V dropout voltage, and 2% accuracy. Operates with input voltages from 4.55V to 15V, with a maximum operating temperature of 125°C. RoHS compliant and lead-free.
PackageTO-261-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Infineon IFX1117MEV33HTMA1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-261-4 |
| Dropout Voltage | 1.2V |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Input Voltage | 15V |
| Min Input Voltage | 4.55V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Min Output Voltage | 3.3V |
| Max Supply Voltage | 15V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Quiescent Current | 5kA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IFX1117MEV33HTMA1 Datasheet
Download the complete datasheet for Infineon IFX1117MEV33HTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

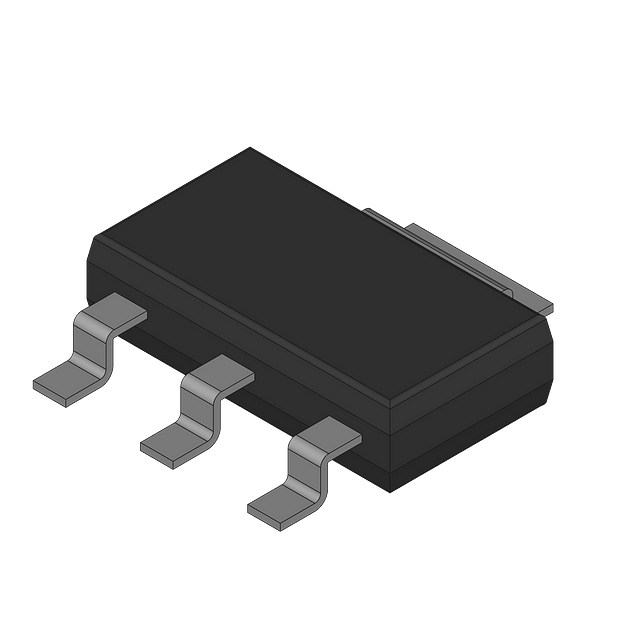

Product Images
