Adjustable positive linear voltage regulator IC with a 1A output current and 1.2V dropout voltage. Features a 1.25V adjustable output voltage, 1.27V reference voltage, and 2% accuracy. Operates with a maximum input voltage of 15V and a minimum input voltage of 4.55V. Housed in a TO-261-4 (SOT-223) surface mount package, this RoHS compliant component has a minimum current limit of 1.1A and a maximum operating temperature of 125°C.
PackageTO-261-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Infineon IFX1117MEVHTMA1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-261-4 |
| Dropout Voltage | 1.2V |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Min Current Limit | 1.1A |
| Max Input Voltage | 15V |
| Min Input Voltage | 4.55V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Supply Voltage | 15V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 1.25V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 5kA |
| Radiation Hardening | No |
| Reference Voltage | 1.27V |
| RoHS Compliant | Yes |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IFX1117MEVHTMA1 Datasheet
Download the complete datasheet for Infineon IFX1117MEVHTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

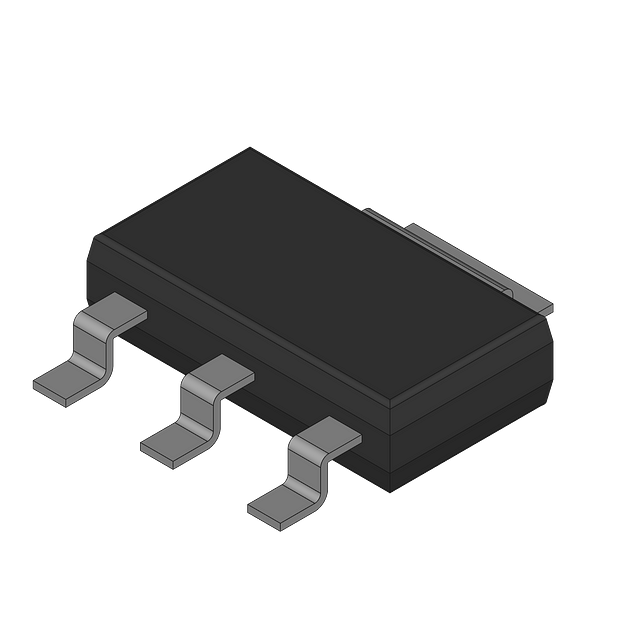

Product Images
