Fixed positive linear voltage regulator, 5V nominal output, 30mA maximum output current. Features 250mV dropout voltage and 4% accuracy. Operates with input voltages from 5.5V to 45V, with a maximum supply voltage of 45V. Packaged in a 5-pin PDSO5 (SCT-595) surface-mount case. RoHS compliant and lead-free.
PackageSMD/SMT
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Infineon IFX20002MBV50HTSA1 technical specifications.
General
| Accuracy | 4% |
| Package/Case | SMD/SMT |
| Dropout Voltage | 250mV |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Min Current Limit | 30mA |
| Max Input Voltage | 45V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 30mA |
| Max Supply Voltage | 45V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 30mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 130A |
| RoHS Compliant | Yes |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IFX20002MBV50HTSA1 Datasheet
Download the complete datasheet for Infineon IFX20002MBV50HTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

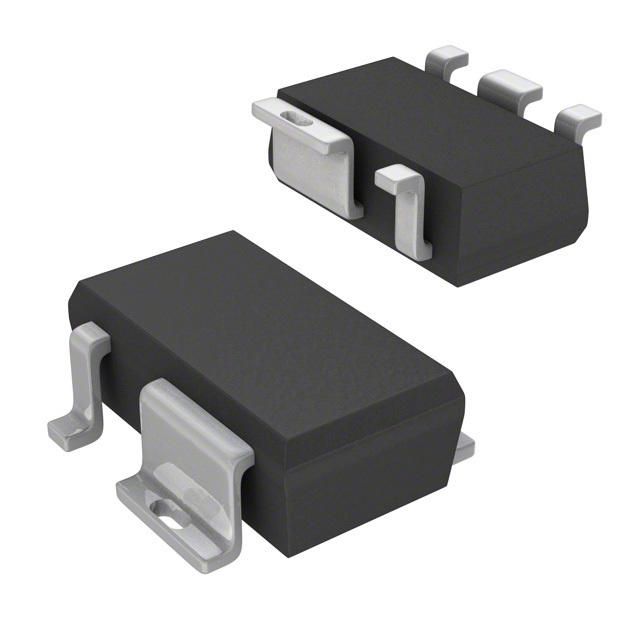

Product Images
