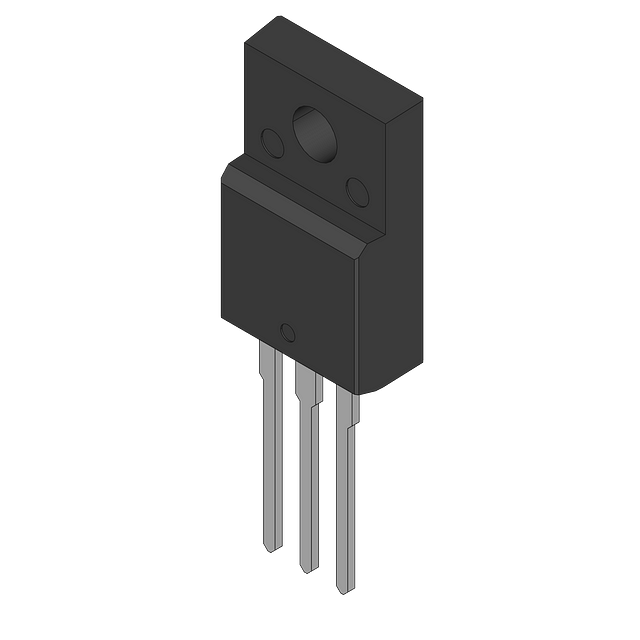

The IGA30N60H3XKSA1 is a 600V insulated gate bipolar transistor (IGBT) with a maximum collector current of 18A and a maximum power dissipation of 43W. It is packaged in a TO-220-3 package and is lead free and halogen free. The IGBT has a maximum operating temperature of 175°C and a minimum operating temperature of -40°C. It is RoHS compliant and available in a rail/tube packaging with 500 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IGA30N60H3XKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IGA30N60H3XKSA1 technical specifications.
| Package/Case | TO-220-3 |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 2.4V |
| Element Configuration | Single |
| Halogen Free | Halogen Free |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 600V |
| Max Collector Current | 18A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 43W |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | TrenchStop® |
| RoHS | Compliant |
Download the complete datasheet for Infineon IGA30N60H3XKSA1 to view detailed technical specifications.
