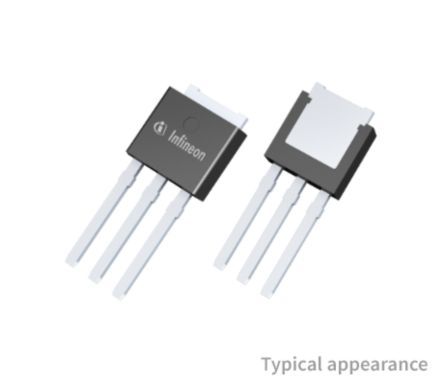

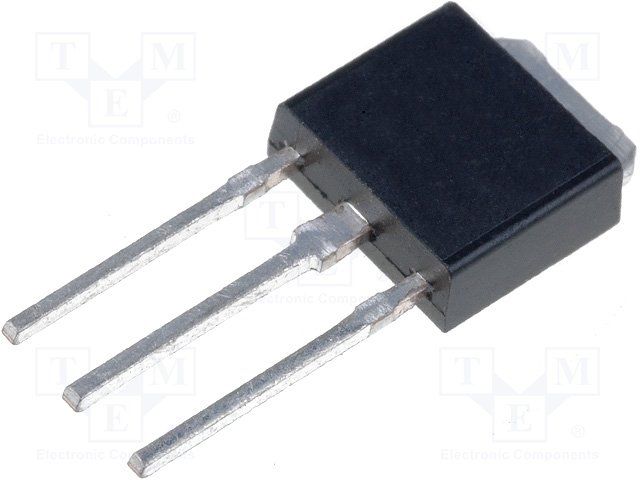

The IGU04N60TAKMA1 is an insulated gate bipolar transistor from Infineon, featuring a collector-emitter breakdown voltage of 600V and a maximum collector current of 8A. It is packaged in a TO-251 case and is designed for through-hole mounting. The device is rated for operation between -40°C and 175°C and has a maximum power dissipation of 42W. The IGU04N60TAKMA1 is compliant with RoHS regulations and is available in rail or tube packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IGU04N60TAKMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IGU04N60TAKMA1 technical specifications.
| Package/Case | TO-251 |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 2.05V |
| Halogen Free | Halogen Free |
| Input Type | STANDARD |
| Lead Free | Contains Lead |
| Max Collector Current | 8A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 42W |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | TrenchStop™ |
| RoHS | Compliant |
