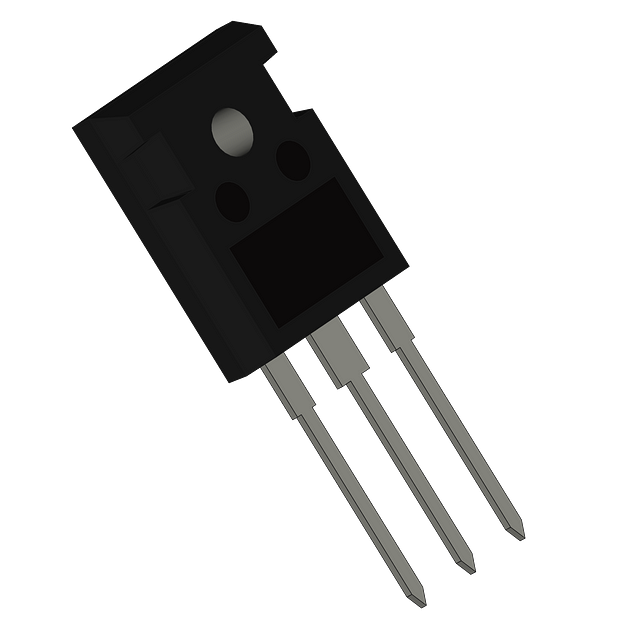

The IHW30N110R3FKSA1 is a 1.1kV insulated gate bipolar transistor (IGBT) with a maximum collector current of 60A and a maximum power dissipation of 333W. It is packaged in a TO-247-3 flange mount package and is compliant with RoHS regulations. The IGBT has a maximum operating temperature of 175°C and a minimum operating temperature of -40°C. It is available in a rail/tube packaging format with 240 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IHW30N110R3FKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IHW30N110R3FKSA1 technical specifications.
| Package/Case | TO-247-3 |
| Collector Emitter Breakdown Voltage | 1.1kV |
| Collector Emitter Saturation Voltage | 1.55V |
| Collector Emitter Voltage (VCEO) | 1.1kV |
| Collector-emitter Voltage-Max | 1.75V |
| Halogen Free | Halogen Free |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 1.1kV |
| Max Collector Current | 60A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 333W |
| Package Quantity | 240 |
| Packaging | Rail/Tube |
| Power Dissipation | 333W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
