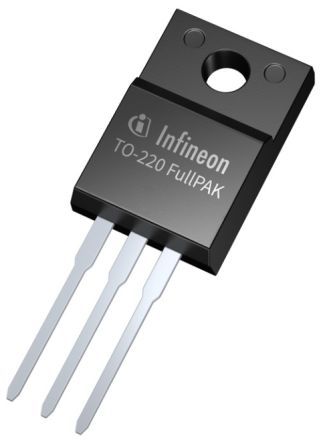

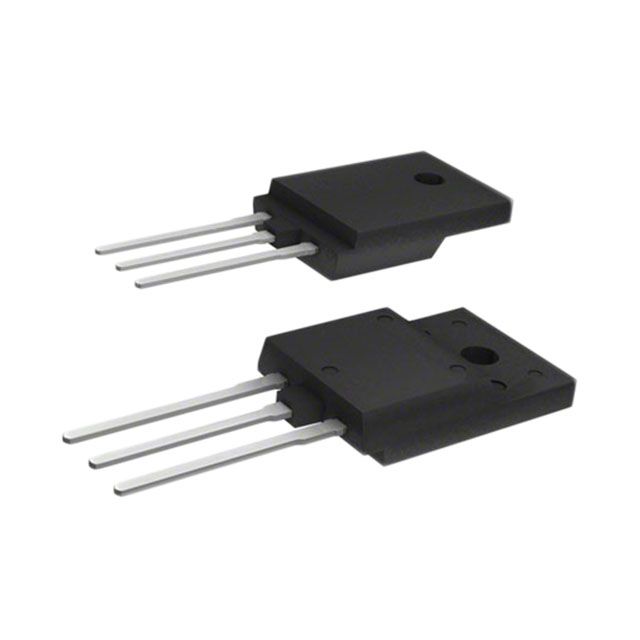

The IPA50R500CEXKSA2 is a N-CHANNEL MOSFET with a Drain to Source Breakdown Voltage of 500V and a Continuous Drain Current of 7.6A. It has a Max Operating Temperature range of -40°C to 150°C and is packaged in a TO-220-3 case. The device is RoHS Compliant and Lead Free, and is part of the CoolMOS series. It has a Max Power Dissipation of 28W and an On-State Resistance of 500mR.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPA50R500CEXKSA2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPA50R500CEXKSA2 technical specifications.
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 7.6A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 500mR |
| Fall Time | 12ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 433pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 28W |
| On-State Resistance | 500mR |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 28W |
| Rds On Max | 500mR |
| RoHS Compliant | Yes |
| Series | CoolMOS™ |
| Turn-Off Delay Time | 30ns |
| Turn-On Delay Time | 6ns |
| RoHS | Compliant |
