The IPA60R190P6XKSA1 is a 600V power MOSFET from Infineon, packaged in a TO-220 flange mount. It can handle a continuous drain current of 20.2A and has a maximum operating temperature of 150°C. The device is RoHS compliant and lead-free, with a halogen-free construction. It features fast switching times, with a fall time of 7ns and turn-off delay time of 45ns. The MOSFET is suitable for high-power applications, with a maximum dual supply voltage of 600V.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon IPA60R190P6XKSA1 technical specifications.
General
| Package/Case | TO-220 |
| Continuous Drain Current (ID) | 20.2A |
| Drain to Source Voltage (Vdss) | 600V |
| Fall Time | 7ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 600V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 45ns |
| Turn-On Delay Time | 15ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPA60R190P6XKSA1 Datasheet
Download the complete datasheet for Infineon IPA60R190P6XKSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

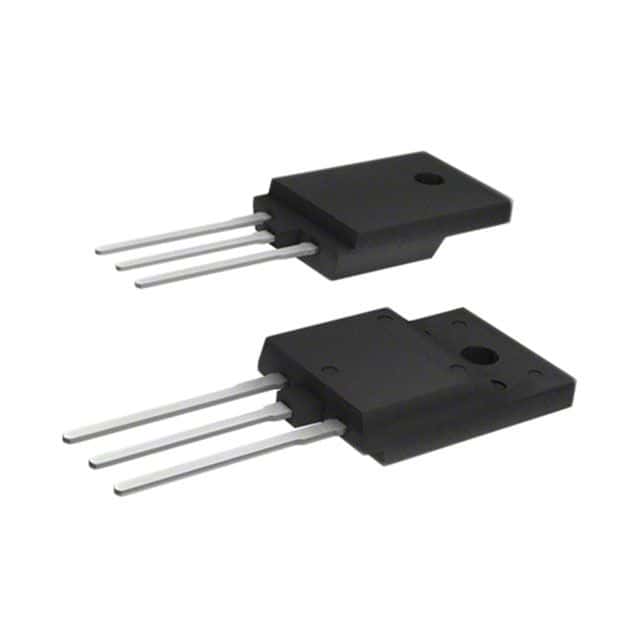

Product Images
