N-channel Power MOSFET, 60V Vdss, 120A continuous drain current, and 2.4mR on-state resistance. Features include a 10ns fall time, 25ns turn-on delay, and 50ns turn-off delay. This silicon, metal-oxide semiconductor FET is housed in a TO-263-3 surface-mount package and operates from -55°C to 175°C with a maximum power dissipation of 188W. It is RoHS compliant and Halogen Free.
PackageTO-263-3
MountingSurface Mount
PolarityN-CHANNEL
Power188W
Quick Jump:
Technical Specifications
Infineon IPB120N06S402ATMA2 technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 120A |
| Drain to Source Resistance | 2.4mR |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 4.4mm |
| Input Capacitance | 15.75nF |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 188W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| On-State Resistance | 2.4mR |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 188W |
| Rds On Max | 2.8mR |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, OptiMOS™ |
| Turn-Off Delay Time | 50ns |
| Turn-On Delay Time | 25ns |
| Weight | 0.068654oz |
| Width | 9.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB120N06S402ATMA2 Datasheet
Download the complete datasheet for Infineon IPB120N06S402ATMA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

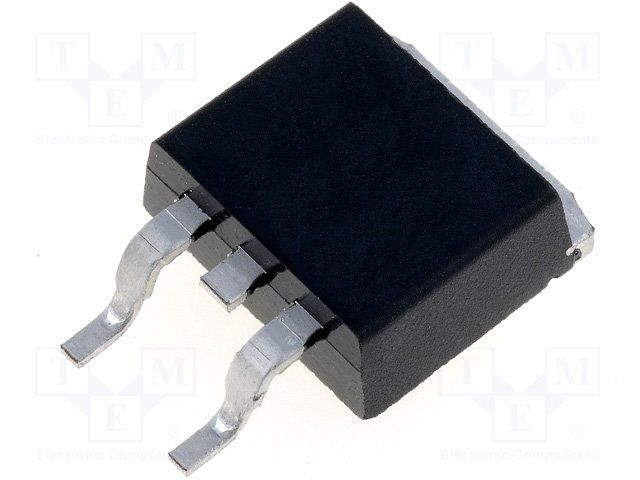

Product Images
