Technical Specifications
Infineon IPB120N06S403ATMA1 technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 120A |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 20V |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 80ns |
| Turn-On Delay Time | 40ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB120N06S403ATMA1 Datasheet
Download the complete datasheet for Infineon IPB120N06S403ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

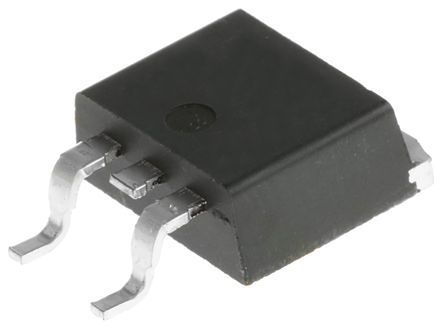

Product Images
