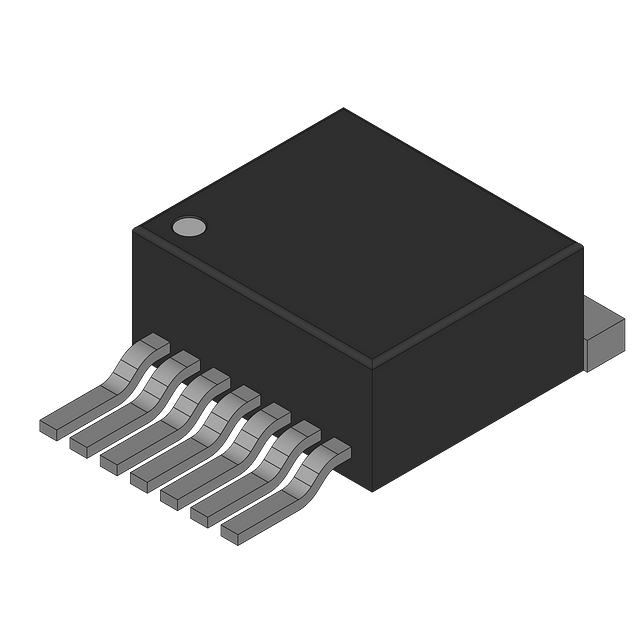

The IPB180N03S4LH0ATMA1 is a 30V 180A TO-263-7 OptiMOS MOSFET from Infineon. It features a maximum power dissipation of 250W and operates within a temperature range of -55°C to 175°C. The device is packaged in a TO-263-7 case and is available in quantities of 1000. It is lead-free and halogen-free, and compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPB180N03S4LH0ATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPB180N03S4LH0ATMA1 technical specifications.
| Package/Case | TO-263-7 |
| Continuous Drain Current (ID) | 180A |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 25ns |
| Gate to Source Voltage (Vgs) | 16V |
| Halogen Free | Halogen Free |
| Height | 4.57mm |
| Input Capacitance | 23nF |
| Lead Free | Lead Free |
| Length | 10.31mm |
| Max Dual Supply Voltage | 30V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250W |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Rds On Max | 0.95mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 9ns |
| Width | 9.45mm |
| RoHS | Compliant |
