Technical Specifications
Infineon IPB180N04S4-01 technical specifications.
General
| Package/Case | TO-263-7 |
| Continuous Drain Current (ID) | 180A |
| Drain to Source Voltage (Vdss) | 40V |
| Fall Time | 41ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 14nF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 40V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 188W |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Rds On Max | 1.3mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 38ns |
| Turn-On Delay Time | 35ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB180N04S4-01 Datasheet
Download the complete datasheet for Infineon IPB180N04S4-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

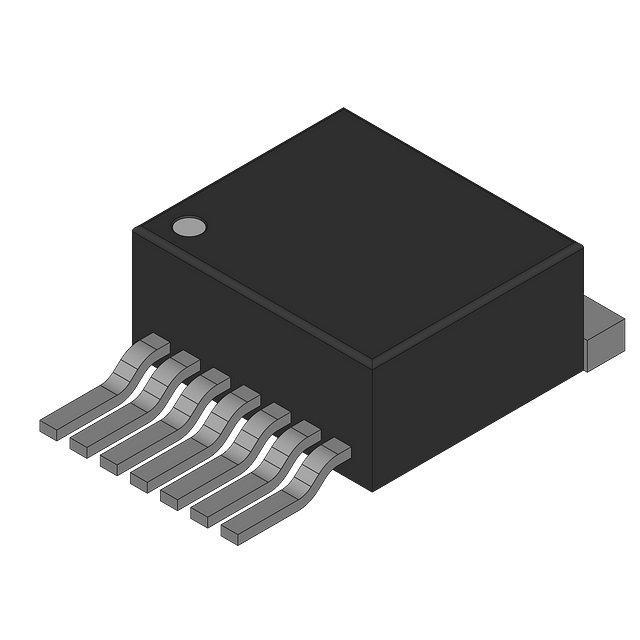

Product Images
