Infineon
IPB180P04P4L-02
Power Field-Effect Transistor, 180A I(D), 40V, 0.0039ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263, GREEN, PLASTIC PACKAGE-7
PackageTO-263-7
Quick Jump:
Technical Specifications
Infineon IPB180P04P4L-02 technical specifications.
General
| Package/Case | TO-263-7 |
| Continuous Drain Current (ID) | 180A |
| Drain to Source Voltage (Vdss) | -40V |
| Fall Time | 119ns |
| Gate to Source Voltage (Vgs) | 16V |
| Halogen Free | Halogen Free |
| Max Dual Supply Voltage | -40V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Packaging | Tape and Reel |
| Rds On Max | 2.4mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 146ns |
| Turn-On Delay Time | 32ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB180P04P4L-02 Datasheet
Download the complete datasheet for Infineon IPB180P04P4L-02 to view detailed technical specifications.
No datasheet is available for this part.

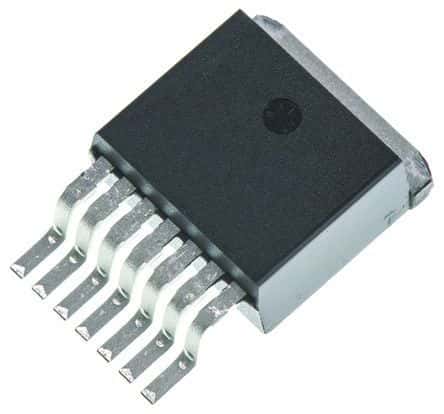

Product Images
