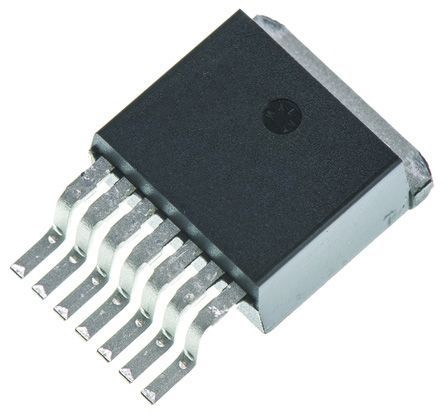

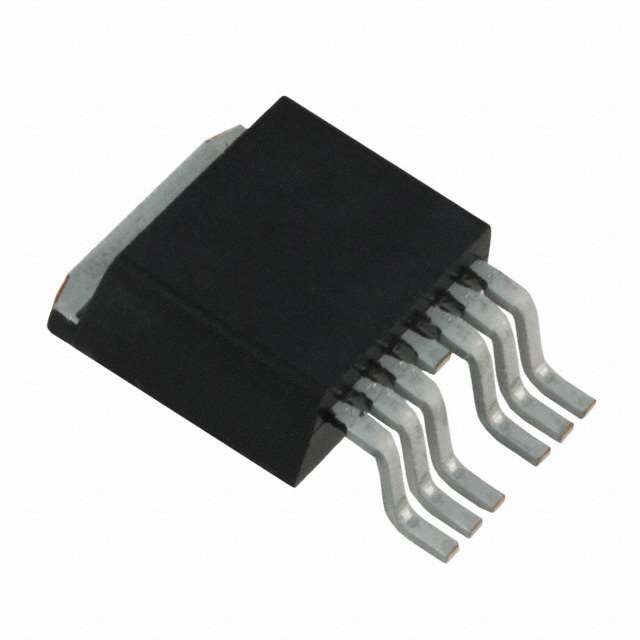

The IPB180P04P4L02ATMA1 is a high-power N-channel MOSFET from Infineon, featuring a continuous drain current of 180A and a maximum drain to source voltage of -40V. It has a maximum power dissipation of 150W and operates over a temperature range of -55°C to 175°C. The device is packaged in a TO-263-7 plastic package and is suitable for surface mount applications. It is also RoHS compliant and halogen free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPB180P04P4L02ATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPB180P04P4L02ATMA1 technical specifications.
| Package/Case | TO-263-7 |
| Continuous Drain Current (ID) | 180A |
| Drain to Source Resistance | 1.8mR |
| Drain to Source Voltage (Vdss) | -40V |
| Fall Time | 119ns |
| Gate to Source Voltage (Vgs) | 16V |
| Halogen Free | Halogen Free |
| Input Capacitance | 18.7nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | -40V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150W |
| Mount | Surface Mount |
| On-State Resistance | 2.4mR |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Power Dissipation | 150W |
| Rds On Max | 2.4mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 146ns |
| Turn-On Delay Time | 32ns |
| RoHS | Compliant |
