Technical Specifications
Infineon IPB65R045C7ATMA1 technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 46A |
| Drain to Source Resistance | 40mR |
| Drain to Source Voltage (Vdss) | 650V |
| Fall Time | 7ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 4.34nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 650V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 227W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| On-State Resistance | 45mR |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 227W |
| Rds On Max | 45mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 82ns |
| Turn-On Delay Time | 20ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB65R045C7ATMA1 Datasheet
Download the complete datasheet for Infineon IPB65R045C7ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

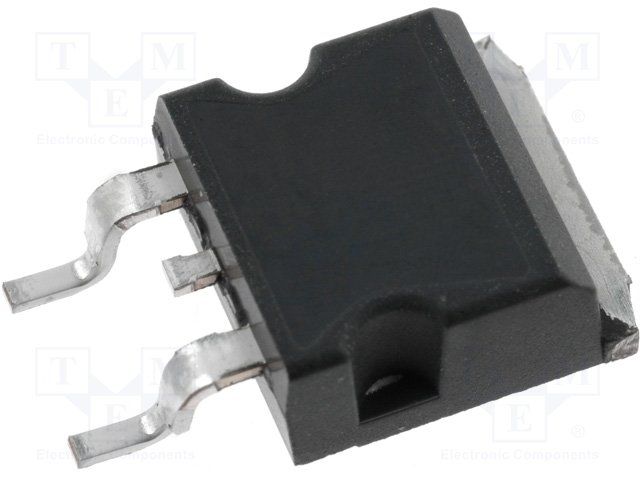

Product Images
