Infineon IPB70N10S312ATMA1 technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 70A |
| Drain to Source Voltage (Vdss) | 100V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 4.355nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 100V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125W |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 11.3mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 17ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPB70N10S312ATMA1 Datasheet
Download the complete datasheet for Infineon IPB70N10S312ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

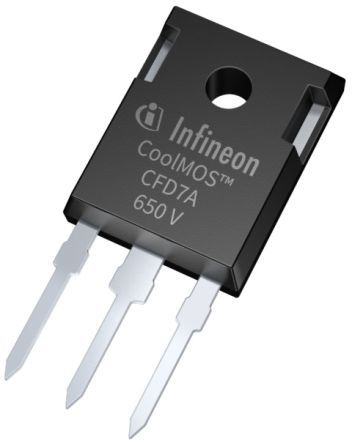

Product Images
