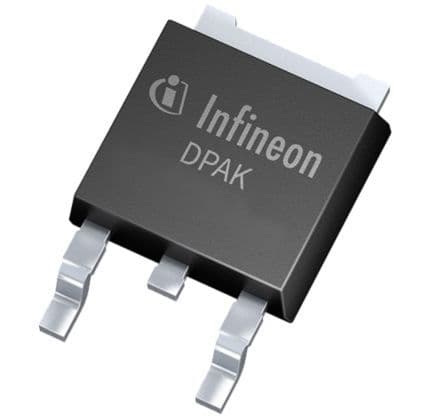

N-Channel Power MOSFET, 100V Drain-Source Voltage, 27A Continuous Drain Current, and 33mΩ Max Rds(on). This silicon Metal-Oxide-Semiconductor FET features a 1-element design with a 1.57nF input capacitance and a 3V threshold voltage. Operating across a wide temperature range of -55°C to 175°C, it offers a maximum power dissipation of 58W. Designed for surface mounting in a TO-252 package, this RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPD33CN10NGATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPD33CN10NGATMA1 technical specifications.
| Package/Case | TO-252 |
| Continuous Drain Current (ID) | 27A |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 4ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 1.57nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 58W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 58W |
| Rds On Max | 33mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 3V |
| Turn-Off Delay Time | 17ns |
| Turn-On Delay Time | 11ns |
| RoHS | Compliant |
