Infineon
IPD90P03P4L-04
Power Field-Effect Transistor, 90A I(D), 30V, 0.0068ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252, GREEN, PLASTIC PACKAGE-3
PackageTO-252-3
Quick Jump:
Technical Specifications
Infineon IPD90P03P4L-04 technical specifications.
General
Package/Case
TO-252-3
Continuous Drain Current (ID)
90A
Drain to Source Voltage (Vdss)
-30V
Fall Time
40ns
Gate to Source Voltage (Vgs)
5V
Halogen Free
Halogen Free
Height
2.3mm
Input Capacitance
11.3nF
Lead Free
Lead Free
Length
6.5mm
Max Dual Supply Voltage
-30V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
137W
Package Quantity
2500
Packaging
Tape and Reel
Rds On Max
4.1mR
RoHS Compliant
Yes
Series
OptiMOS™
Turn-Off Delay Time
140ns
Turn-On Delay Time
17ns
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Infineon IPD90P03P4L-04 Datasheet
Download the complete datasheet for Infineon IPD90P03P4L-04 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

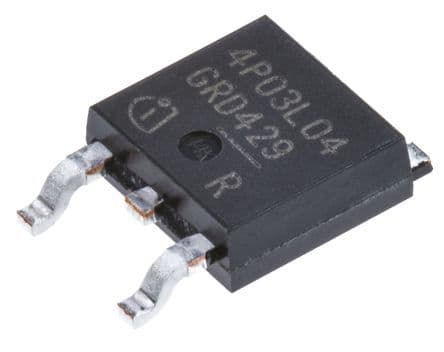

Product Images
