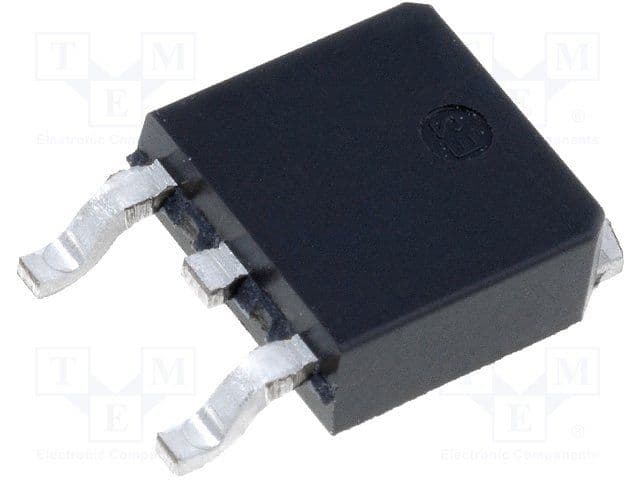

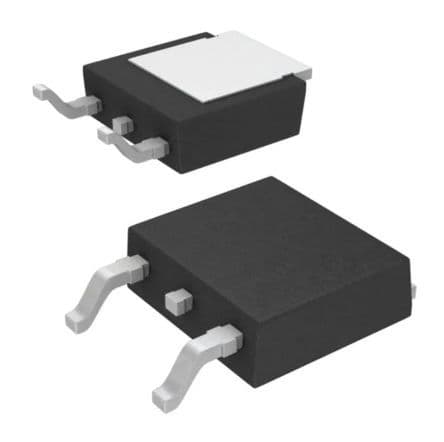

N-channel MOSFET transistor featuring 900V drain-to-source voltage and 5.1A continuous drain current. This single-element transistor offers a low on-state resistance of 1.2 ohms at 10V gate-to-source voltage. With a maximum power dissipation of 83W and a surface mount TO-252-3 package, it is suitable for demanding applications. Operating temperature range spans from -55°C to 150°C, with typical switching times including a 70ns turn-on delay and 40ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPD90R1K2C3ATMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-252-3 |
| Continuous Drain Current (ID) | 5.1A |
| Drain to Source Resistance | 1.2R |
| Drain to Source Voltage (Vdss) | 900V |
| Element Configuration | Single |
| Fall Time | 40ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Not Halogen Free |
| Input Capacitance | 710pF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 900V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 83W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| On-State Resistance | 1.2R |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 83W |
| Radiation Hardening | No |
| Rds On Max | 1.2R |
| RoHS Compliant | Yes |
| Series | CoolMOS™ |
| Turn-Off Delay Time | 400ns |
| Turn-On Delay Time | 70ns |
| Weight | 0.139332oz |
| RoHS | Compliant |
