Technical Specifications
Infineon IPP040N06NAKSA1 technical specifications.
General
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 20A |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 15.95mm |
| Input Capacitance | 2.7nF |
| Lead Free | Contains Lead |
| Length | 10.36mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3W |
| On-State Resistance | 4mR |
| Package Quantity | 250 |
| Packaging | Rail/Tube |
| Rds On Max | 4mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 30ns |
| Turn-On Delay Time | 19ns |
| Width | 4.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPP040N06NAKSA1 Datasheet
Download the complete datasheet for Infineon IPP040N06NAKSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

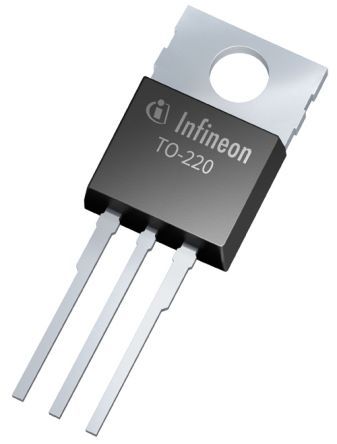

Product Images
