Technical Specifications
Infineon IPT004N03LATMA1 technical specifications.
General
| Continuous Drain Current (ID) | 300A |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 37ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 24nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 30V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 0.4mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 2.2V |
| Turn-Off Delay Time | 149ns |
| Turn-On Delay Time | 30ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPT004N03LATMA1 Datasheet
Download the complete datasheet for Infineon IPT004N03LATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

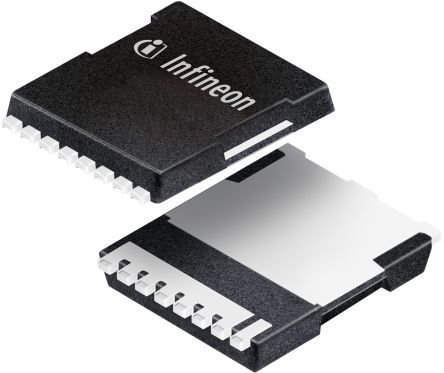

Product Images
