IPW60R045CPA

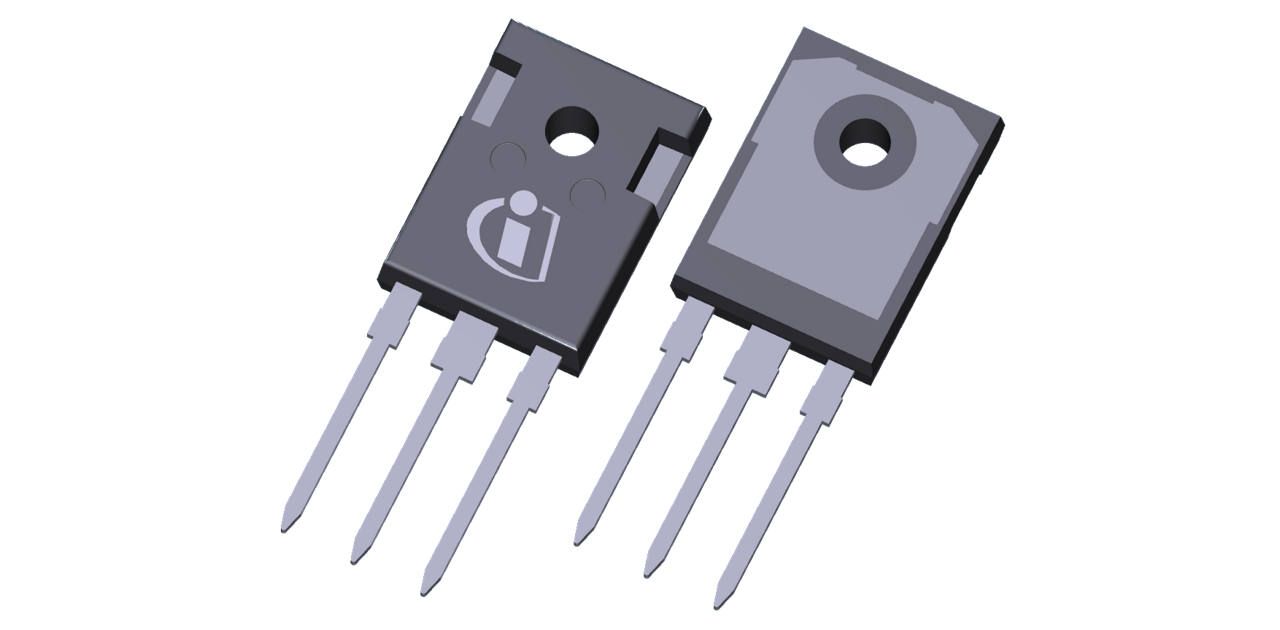

This automotive-qualified N-channel power MOSFET uses CoolMOS™ CPA technology and is rated for 600 V drain-source voltage. It is offered in the PG-TO-247-3 package and specifies 45 mΩ maximum RDS(on) at 25°C with 40 mΩ typical. The device is rated for 60 A drain current, 150 nC maximum total gate charge at 10 V, and 0.29 K/W maximum thermal resistance from junction to case. The product page lists it for full-bridge topologies and DC-DC converters. Ordering information shows tube packing with a standard packing size of 240 pieces.
