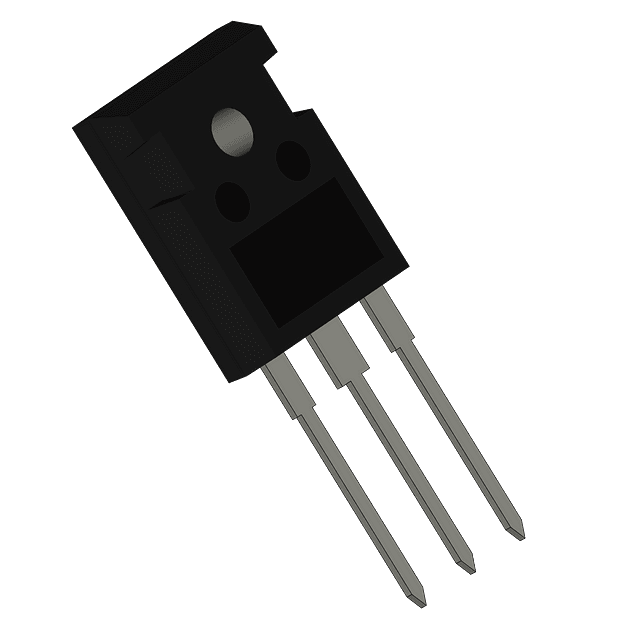

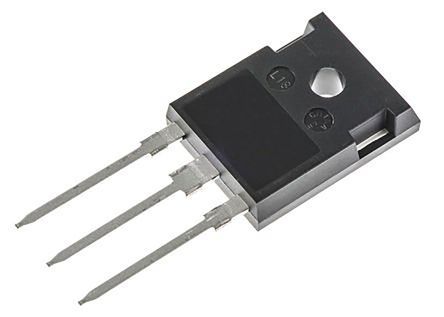

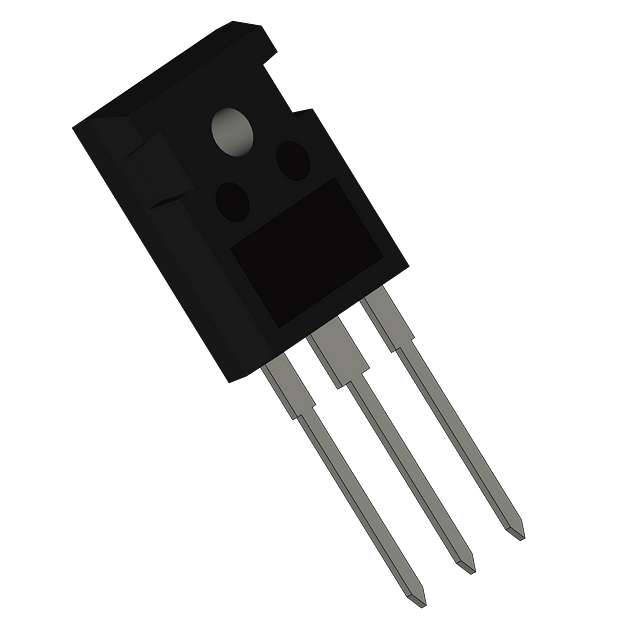

The IPW90R1K0C3FKSA1 is a high-power MOSFET from Infineon, featuring a TO-247-3 flange mount package and a maximum operating temperature range of -55°C to 150°C. It has a maximum drain to source voltage of 900V and a continuous drain current of 5.7A. The device is RoHS compliant and has a maximum power dissipation of 89W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPW90R1K0C3FKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPW90R1K0C3FKSA1 technical specifications.
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 5.7A |
| Drain to Source Voltage (Vdss) | 900V |
| Fall Time | 35ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 850pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 89W |
| Package Quantity | 240 |
| Packaging | Rail/Tube |
| Rds On Max | 1R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CoolMOS™ |
| Threshold Voltage | 3V |
| Turn-Off Delay Time | 400ns |
| Turn-On Delay Time | 70ns |
| RoHS | Compliant |
