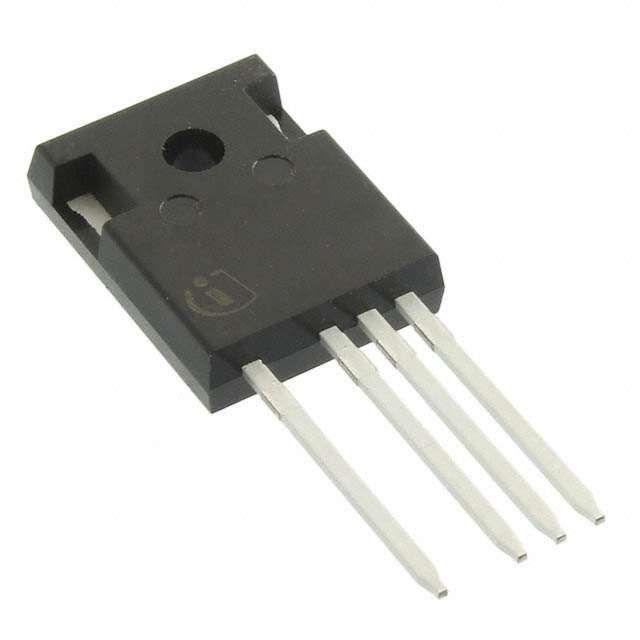

The IPZ65R095C7XKSA1 is a 650V power MOSFET from Infineon, featuring a continuous drain current of 24A and a maximum operating temperature of 150°C. It is packaged in a TO-247-4 case and is designed for through hole mounting. The device is compliant with RoHS regulations and is halogen free. It has a maximum power dissipation of 128W and a maximum dual supply voltage of 650V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPZ65R095C7XKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon IPZ65R095C7XKSA1 technical specifications.
| Package/Case | TO-247-4 |
| Continuous Drain Current (ID) | 24A |
| Drain to Source Voltage (Vdss) | 650V |
| Fall Time | 7ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.14nF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 650V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 128W |
| Mount | Through Hole |
| Rds On Max | 95mR |
| RoHS Compliant | Yes |
| Series | CoolMOS™ C7 |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 12ns |
| RoHS | Compliant |
