Technical Specifications

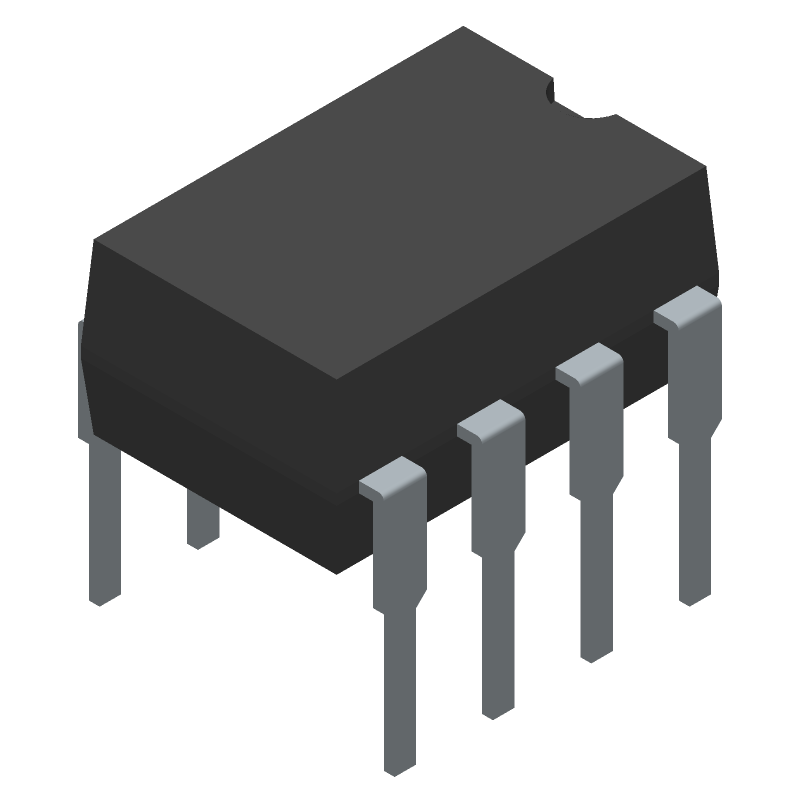

Infineon IR2011 technical specifications.
General
Max Operating Temperature
125
Number of Terminals
8
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDIP-T8
Width
7.62
Length
9.88
Number of Functions
1
Temperature Grade
AUTOMOTIVE
Supply Voltage-Nom
15
Supply Voltage-Min
10
Supply Voltage-Max
20
Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER
Compliance
RoHS
No
Eccn Code
EAR99
HTS Code
8542.39.00.01
REACH
Compliant
Military Spec
False
Datasheet
Infineon IR2011 Datasheet
Download the complete datasheet for Infineon IR2011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
