Single-channel, buffer/inverter based peripheral driver IC for interface applications. Features a maximum operating voltage of 60V and a maximum supply current of 300µA. Operates across a temperature range of -40°C to 125°C with a maximum power dissipation of 1.7W. Packaged in a SOT-223-4 surface mount case, supplied on tape and reel. RoHS compliant.
PackageSOT-223-4
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon ITS41K0SMENHUMA1 technical specifications.
General
| Package/Case | SOT-223-4 |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.7W |
| Max Supply Voltage | 60V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ITS41KOS |
| Supply Current | 300uA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ITS41K0SMENHUMA1 Datasheet
Download the complete datasheet for Infineon ITS41K0SMENHUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

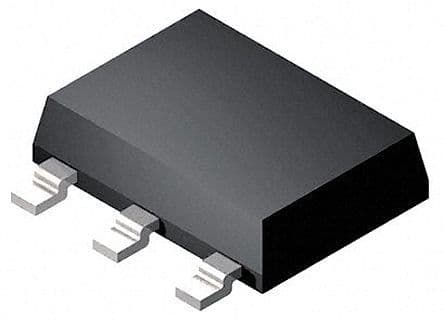

Product Images
