Single-channel, high-side peripheral driver IC in a SOIC package. Features over-voltage and over-temperature fault protection, with a maximum output current of 1.2A and a maximum supply voltage of 52V. Operates from -40°C to 125°C with a maximum power dissipation of 1.4W. This surface-mount component offers a simple ON/OFF interface and is halogen-free, lead-free, and RoHS compliant.
PackageSOIC
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon ITS4200SSJDXUMA1 technical specifications.
General
| Package/Case | SOIC |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 1.4W |
| Max Supply Voltage | 52V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Supply Current | 800uA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ITS4200SSJDXUMA1 Datasheet
Download the complete datasheet for Infineon ITS4200SSJDXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

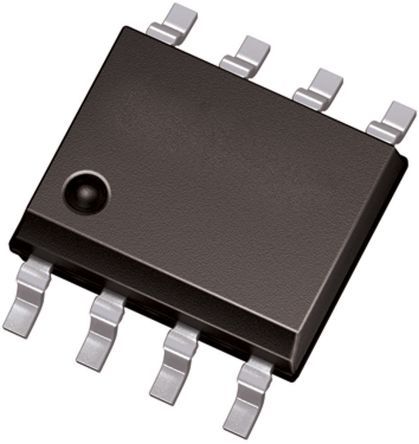

Product Images
