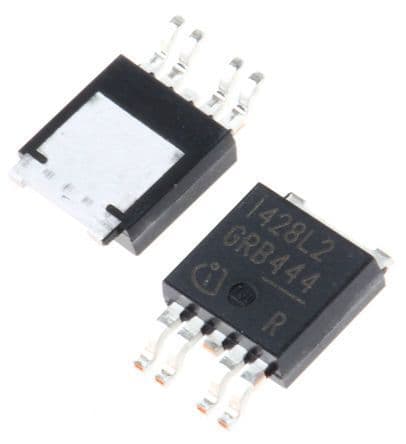

The ITS428L2 is a single-channel PROFET IC from Infineon, featuring a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It has a maximum supply voltage of 41V and a maximum output current of 17A. The device is packaged in a TO-252-5 case and is lead-free and halogen-free. It is RoHS compliant and suitable for use in a variety of applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon ITS428L2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-252-5 |
| Current | 7A |
| Halogen Free | Halogen Free |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 17A |
| Max Power Dissipation | 75W |
| Max Supply Voltage | 41V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 50mR |
| Output Current per Channel | 7A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 75W |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 800uA |
| Voltage | 16V |
| Width | 6.22mm |
| RoHS | Compliant |
