4-channel peripheral driver IC featuring 40V drain-to-source voltage and 5.3A output current. This SOIC-packaged component offers 2.6A output current per channel with a low 110mR on-state resistance. Maximum power dissipation is 3.6W, with a supply current of 1.9mA. Operating temperature range is -30°C to 85°C.
PackageSOIC
Voltage40V
Current5.3A
Power3.6W
Quick Jump:
Technical Specifications
Infineon ITS716G technical specifications.
General
| Package/Case | SOIC |
| Current | 5.3A |
| Drain to Source Voltage (Vdss) | 40V |
| Height | 2.45mm |
| Length | 12.8mm |
| Load Current | 2.6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 6.5A |
| Max Power Dissipation | 3.6W |
| Max Supply Current | 1.9mA |
| Max Supply Voltage | 40V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 110mR |
| Output Current | 5.3A |
| Output Current per Channel | 2.6A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.6W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 1.9mA |
| Voltage | 40V |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ITS716G Datasheet
Download the complete datasheet for Infineon ITS716G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

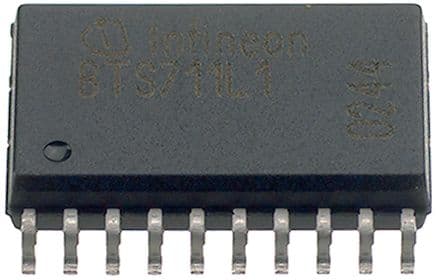

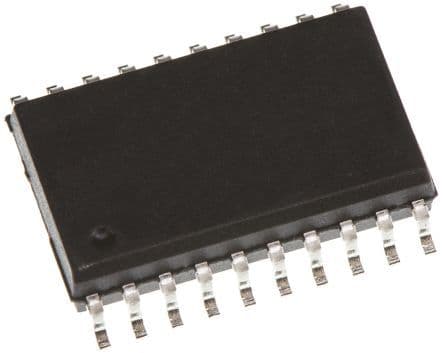

Product Images
