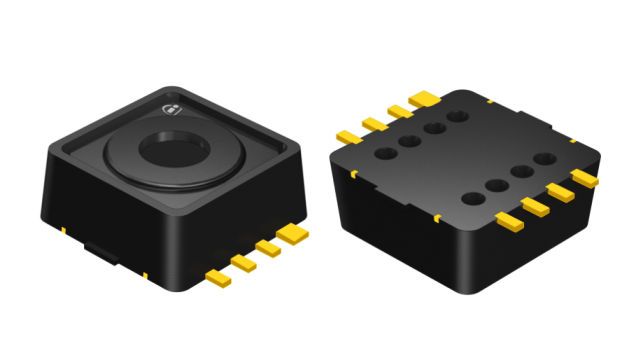

Digital relative pressure sensor for side-crash and pedestrian impact detection in automotive safety systems. The device communicates over a PSI5 interface with synchronous and asynchronous Manchester transmission, integrates EEPROM for ID, calibration, and mode selection, and includes an on-chip voltage regulator. It operates from 4.5 V to 11 V across -40 °C to 125 °C, measures absolute pressure from 50.9 kPa to 126.5 kPa, and derives ambient pressure over 53.6 kPa to 110 kPa. The sensor is qualified for automotive applications, validated to AEC-Q100, and supplied in a PG-DSOF-8-16 surface-mount package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon KP201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Absolute Pressure Range | 50.9 to 126.5kPa |
| Ambient Pressure Range | 53.6 to 110kPa |
| Supply Voltage | 4.5 to 11V |
| Operating Temperature | -40 to 125°C |
| Protocol | PSI5 |
| Classification | ISO 26262-ready |
| Sensor Output | Relative pressure signal (Δp/p0) |
| Interface | 2-wire current modulator for Manchester communication |
| Synchronous Transmission Modes | PSI5-P10P-500/3L and PSI5-P10P-250/1L |
| Asynchronous Transmission Mode | PSI5-A10P-250/1L |
| EEPROM Support | ID number, calibration and mode selection |
| On-Chip Voltage Regulator | Yes |
| Lifetime | 15years |
| External Buffer Capacitor | 0 to 4.7µF |
| Autarky Time | 2 maxms |
| Body Size | 7.0 x 7.0mm |
| Terminal Pitch | 1.27mm |
| RoHS | Yes |
| Lead-free | Yes |
| Halogen Free | Yes |
