N-Channel JFET, surface mount, in a SOT-323 plastic package. Features 60V drain-source voltage (Vdss), 230mA continuous drain current (ID), and 5 Ohm max on-state resistance (Rds On). Operates from -55°C to 150°C with 500mW power dissipation. Includes 2.4ns turn-on delay and 6ns turn-off delay.
PackageSOT-323
MountingSurface Mount
PolarityP-CHANNEL
Power500mW
Quick Jump:
Technical Specifications
Infineon SN7002WH6327XTSA1 technical specifications.
General
Package/Case
SOT-323
Continuous Drain Current (ID)
230mA
Drain to Source Resistance
4.1R
Drain to Source Voltage (Vdss)
60V
Fall Time
8.5ns
Gate to Source Voltage (Vgs)
20V
Halogen Free
Halogen Free
Height
0.8mm
Input Capacitance
45pF
Lead Free
Lead Free
Length
2mm
Max Dual Supply Voltage
60V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
On-State Resistance
5R
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
500mW
Radiation Hardening
No
Rds On Max
5R
RoHS Compliant
Yes
Series
SIPMOS®
Turn-Off Delay Time
6ns
Turn-On Delay Time
2.4ns
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Infineon SN7002WH6327XTSA1 Datasheet
Download the complete datasheet for Infineon SN7002WH6327XTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

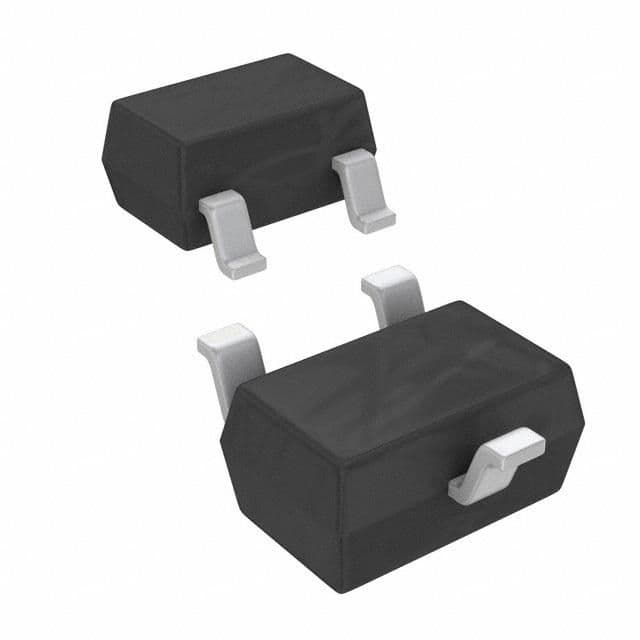

Product Images
