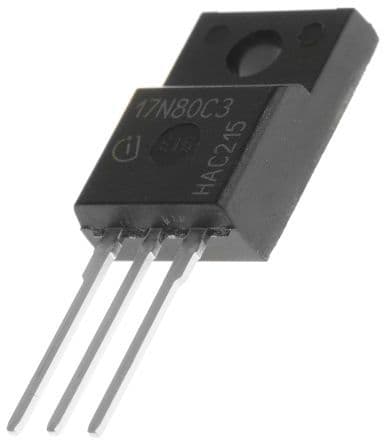

N-Channel Power MOSFET featuring 800V drain-source voltage and 17A continuous drain current. This silicon, metal-oxide semiconductor FET offers a low on-state resistance of 290mΩ (0.29Ω) and a maximum power dissipation of 42W. Designed for through-hole mounting in a TO-220AB package, it boasts fast switching characteristics with a turn-on delay of 25ns and fall time of 6ns. The component is RoHS compliant and operates within a temperature range of -55°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon SPA17N80C3XKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 17A |
| Current Rating | 17A |
| Drain to Source Resistance | 250mR |
| Drain to Source Voltage (Vdss) | 800V |
| Fall Time | 6ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.32nF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 800V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 42W |
| Mount | Through Hole |
| Number of Elements | 1 |
| On-State Resistance | 290mR |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 42W |
| Rds On Max | 290mR |
| RoHS Compliant | Yes |
| Series | CoolMOS™ |
| Turn-Off Delay Time | 72ns |
| Turn-On Delay Time | 25ns |
| DC Rated Voltage | 800V |
| RoHS | Compliant |
