PackageTO-252-3
MountingSurface Mount
Power50W
Quick Jump:
Technical Specifications
Infineon SPD04N50C3ATMA1 technical specifications.
General
Package/Case
TO-252-3
Continuous Drain Current (ID)
4.5A
Drain to Source Voltage (Vdss)
500V
Gate to Source Voltage (Vgs)
20V
Halogen Free
Not Halogen Free
Input Capacitance
470pF
Lead Free
Contains Lead
Max Dual Supply Voltage
500V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
50W
Mount
Surface Mount
Number of Elements
1
Packaging
Tape and Reel
Power Dissipation
50W
Rds On Max
950mR
RoHS Compliant
Yes
Series
CoolMOS™
Turn-Off Delay Time
70ns
Turn-On Delay Time
10ns
Compliance
RoHS
Compliant
Datasheet
Infineon SPD04N50C3ATMA1 Datasheet
Download the complete datasheet for Infineon SPD04N50C3ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

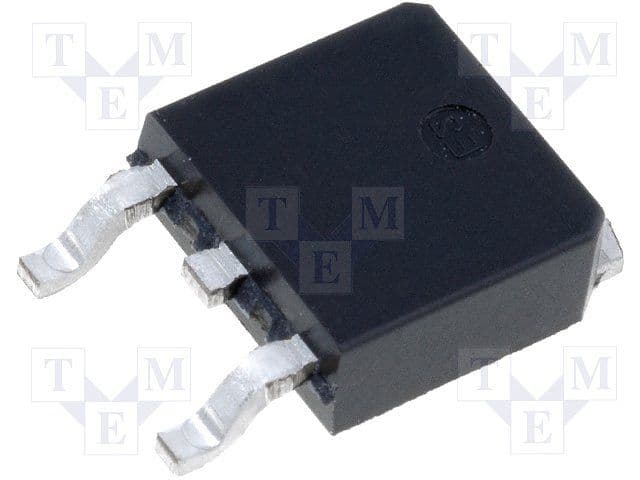

Product Images
