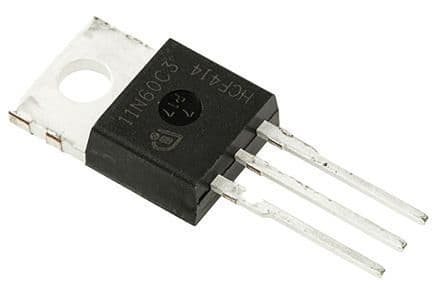

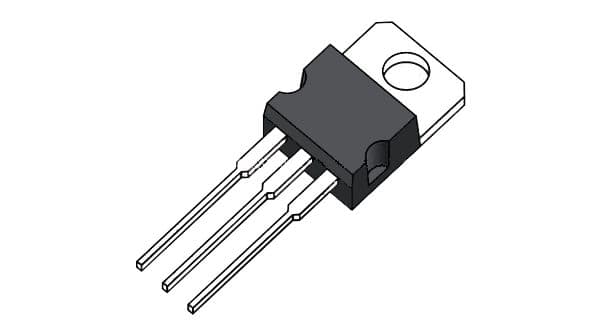

N-channel power MOSFET, 600V drain-source breakdown voltage, 11A continuous drain current, and 0.38 ohm Rds On. Features a 125W power dissipation and operates within a -55°C to 150°C temperature range. Packaged in a TO-220AB, this silicon metal-oxide semiconductor FET offers a 5ns fall time and 10ns turn-on delay.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon SPP11N60C3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 11A |
| Current | 11A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 380mR |
| Drain to Source Voltage (Vdss) | 650V |
| Dual Supply Voltage | 650V |
| Fall Time | 5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 4.4mm |
| Input Capacitance | 1.2nF |
| Length | 8.64mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125W |
| Nominal Vgs | 3V |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 125W |
| Rds On Max | 380mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CoolMOS™ |
| Termination | Through Hole |
| Turn-Off Delay Time | 44ns |
| Turn-On Delay Time | 10ns |
| Voltage | 600V |
| Width | 10.26mm |
| RoHS | Compliant |
