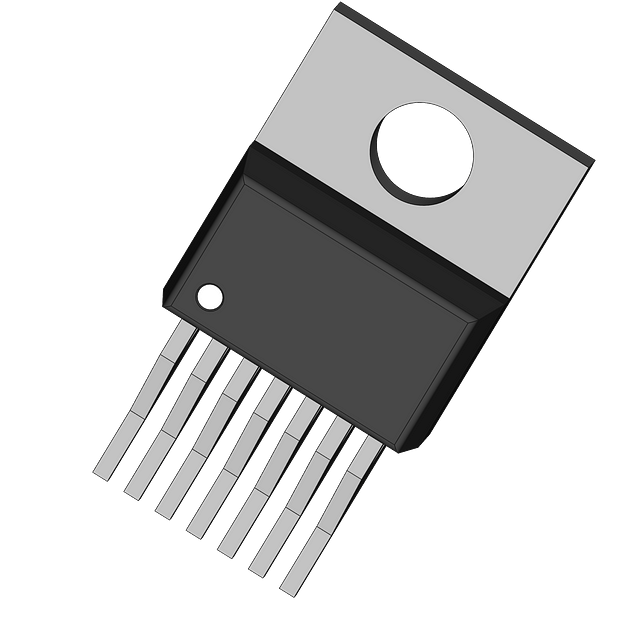

The TDA21201-P7 is a TO-220-7 packaged driver IC designed for PWM interface applications. It features over temperature fault protection and can handle up to 30A of output current per channel. The IC is rated for operation between -25°C and 125°C. It is available in packaging quantities of 500 units, packaged in rail or tube formats. Note that this product is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TDA21201-P7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-7 |
| Fault Protection | Over Temperature |
| Interface | PWM |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Output Current per Channel | 30A |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| RoHS | Not Compliant |
