Automotive LED driver IC featuring a boost topology, designed for single-channel operation. This integrated circuit supports input voltages from 5.5V to 40V and delivers adjustable output current up to 390mA, with a typical output current per channel of 360mA. Operating across a wide temperature range of -40°C to 150°C, it offers a maximum output voltage of 40V and a maximum power dissipation of 1.5W. Packaged in SSOP and supplied on tape and reel, this RoHS and Halogen Free compliant component is ideal for automotive lighting applications.
PackageSSOP
Quick Jump:
Technical Specifications
Infineon TLD1120ELXUMA1 technical specifications.
General
| Package/Case | SSOP |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 390mA |
| Max Output Voltage | 40V |
| Min Output Voltage | -1V |
| Max Power Dissipation | 1.5W |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 40V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 180mA |
| Output Current per Channel | 360mA |
| Output Voltage | 40V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, LITIX™ |
| Tolerance | 7% |
| Topology | Boost |
| Type | Integrated Circuit (IC) |
| Weight | 0.004296oz |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLD1120ELXUMA1 Datasheet
Download the complete datasheet for Infineon TLD1120ELXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

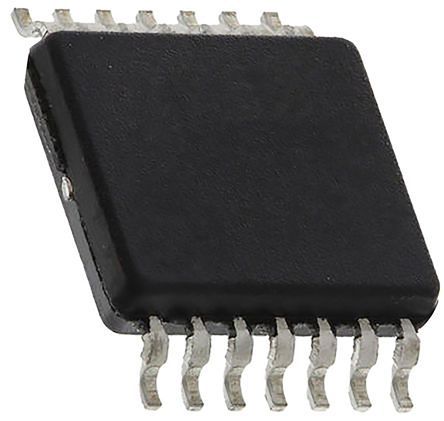

Product Images
