Adjustable positive voltage regulator IC, featuring 0.1% accuracy and a low dropout voltage of 200mV. This single-channel power management IC operates from a 4V to 45V input, delivering up to 70mA output current. Housed in a halogen-free, RoHS-compliant SOIC package, it offers a wide operating temperature range of -40°C to 150°C.
PackageSOIC
PolarityPositive, Negative
Quick Jump:
Technical Specifications
Infineon TLE4254GSXUMA3 technical specifications.
General
| Accuracy | 0.1% |
| Package/Case | SOIC |
| Dropout Voltage | 200mV |
| Halogen Free | Halogen Free |
| Height | 1.575mm |
| Input Bias Current | 1uA |
| Length | 5mm |
| Min Current Limit | 71mA |
| Max Input Voltage | 45V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 70mA |
| Min Output Voltage | 2V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 70mA |
| Output Type | Adjustable |
| Output Voltage | 45V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive, Negative |
| Quiescent Current | 50uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 2V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE4254GSXUMA3 Datasheet
Download the complete datasheet for Infineon TLE4254GSXUMA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

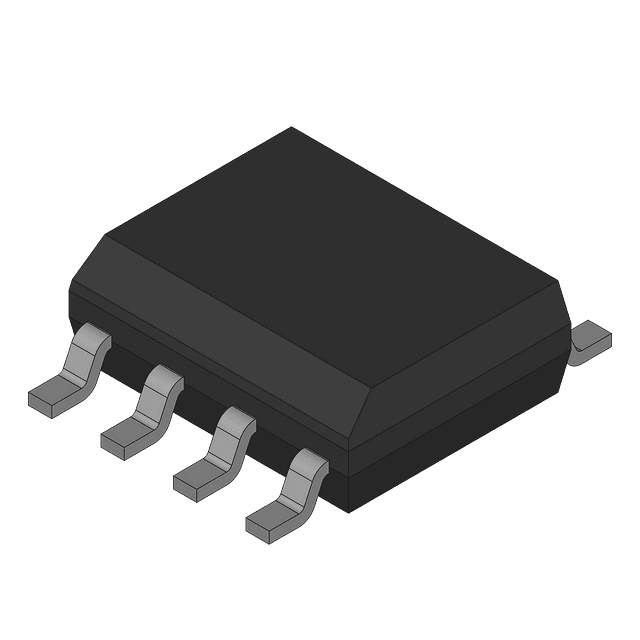

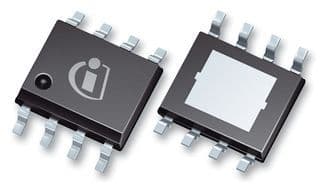

Product Images
