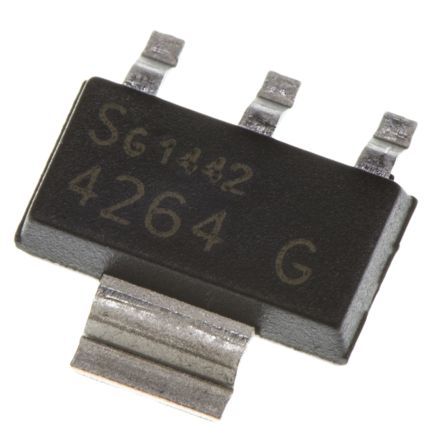

Fixed positive linear voltage regulator (LDO) with a 5V nominal output voltage and 120mA maximum output current. Features a low dropout voltage of 250mV and an accuracy of 2%. Operates from a 5.5V to 45V input voltage range, with a maximum supply current of 15mA and quiescent current of 300uA. Packaged in a SOT-223 surface-mount case, this component offers a wide operating temperature range of -40°C to 150°C and a PSRR of 54dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TLE4264G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 2% |
| Package/Case | SOT-223 |
| Dropout Voltage | 250mV |
| Height | 1.6mm |
| Lead Free | Contains Lead |
| Length | 6.5mm |
| Max Input Voltage | 45V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Supply Current | 15mA |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 120mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54dB |
| Quiescent Current | 300uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, OPTIREG™ |
| Width | 3.5mm |
| RoHS | Compliant |
