5V fixed positive linear voltage regulator (LDO) with 150mA output current and 250mV dropout voltage. Features 2% accuracy, 45V maximum input voltage, and a wide operating temperature range of -40°C to 150°C. Packaged in a DSOP-8 (SOIC) surface-mount package, this RoHS and Halogen Free component is designed for automotive applications and AEC-Q100 qualified.
PackageSOIC
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42694GXUMA1 technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
250mV
Halogen Free
Halogen Free
Lead Free
Lead Free
Min Current Limit
150mA
Max Input Voltage
45V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Voltage
45V
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
210uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Infineon TLE42694GXUMA1 Datasheet
Download the complete datasheet for Infineon TLE42694GXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

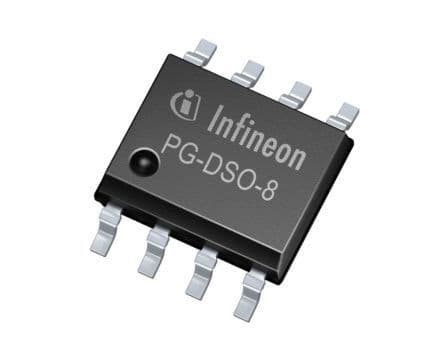

Product Images
