5V fixed output LDO voltage regulator, offering a 550mA maximum output current with 2% accuracy. Features a low dropout voltage of 350mV and a wide input voltage range from 6V to 40V. Operates across a temperature range of -40°C to 150°C. Packaged in a TO-220-7 case, this positive polarity regulator is RoHS compliant and Halogen Free.
PackageTO-220-7
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE4271-2 technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-220-7 |
| Dropout Voltage | 350mV |
| Halogen Free | Halogen Free |
| Height | 17mm |
| Lead Free | Contains Lead |
| Length | 10mm |
| Min Current Limit | 650mA |
| Max Input Voltage | 40V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 550mA |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 550mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 800uA |
| RoHS Compliant | Yes |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE4271-2 Datasheet
Download the complete datasheet for Infineon TLE4271-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

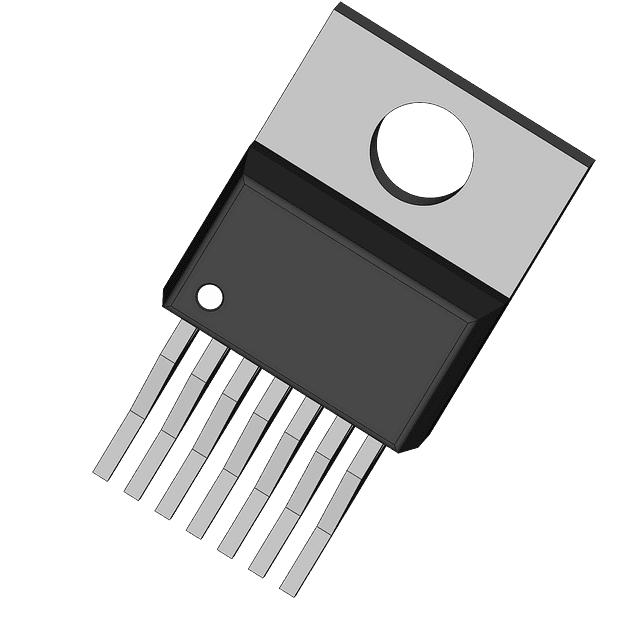

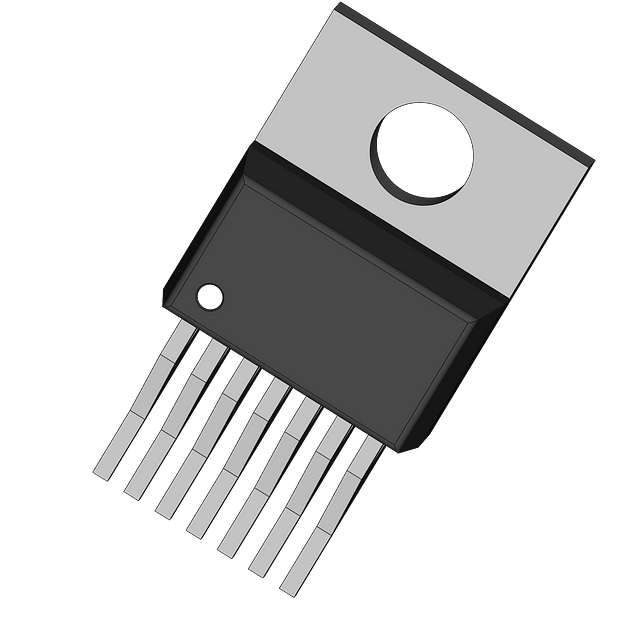

Product Images
