PackageTO-252-5
Quick Jump:
Technical Specifications
Infineon TLE4275DV33 technical specifications.
General
Accuracy
2%
Package/Case
TO-252-5
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
450mA
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Number of Regulators
1
Output Current
400mA
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
180uA
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4275DV33 Datasheet
Download the complete datasheet for Infineon TLE4275DV33 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

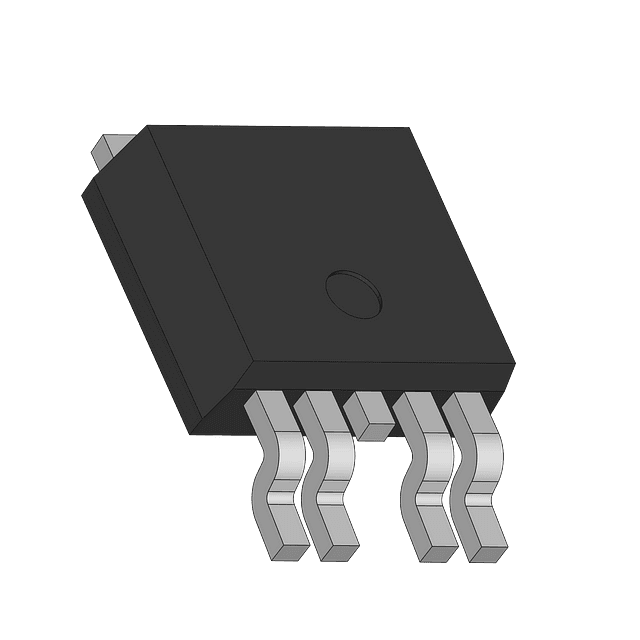

Product Images
