Automotive-grade Hall Effect Sensor, AEC-Q100 qualified, featuring unipolar operation. This linear, omnipolar IC offers a maximum output current of 20mA and operates across a wide supply voltage range from 2.7V to 18V. Designed for surface mounting, it comes in a 3-pin SC package, supplied on tape and reel. The sensor boasts a broad operating temperature range of -40°C to 150°C and is RoHS compliant.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon TLE4906KHTSA1 technical specifications.
General
| Package/Case | SC |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Supply Current | 6mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Output Current | 20mA |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE4906KHTSA1 Datasheet
Download the complete datasheet for Infineon TLE4906KHTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

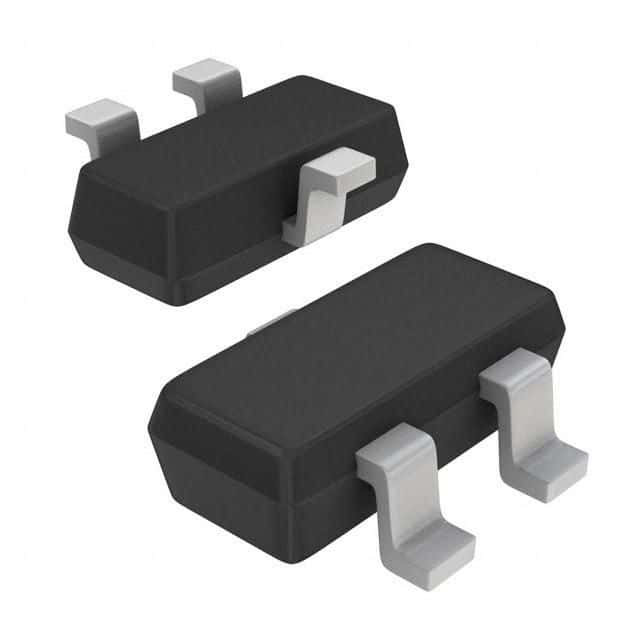

Product Images
