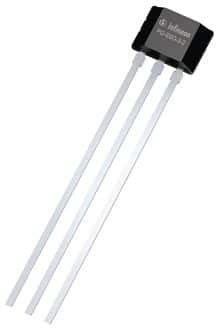

Linear Hall Effect Sensor IC, SSOP-3 package, featuring a bipolar magnetic field detection range of -20mT to 20mT. Operates with a supply voltage from 3.5V to 24V, drawing a maximum supply current of 8mA. Offers a digital output with a maximum output current of 100mA and a maximum output voltage of 32V. Designed for through-hole mounting with tin-plated contacts, this RoHS compliant component operates across a temperature range of -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TLE4935L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Contact Plating | Tin |
| Height | 3.29mm |
| Lead Free | Lead Free |
| Length | 4.16mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Supply Current | 8mA |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 3.5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3.8V |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 12V |
| Output Current | 100mA |
| Output Type | Digital |
| Output Voltage | 32V |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TLE4935 |
| Voltage | 12V |
| Weight | 0.002963oz |
| Width | 1.52mm |
| RoHS | Compliant |
