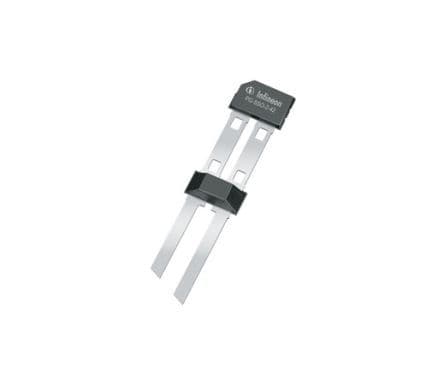

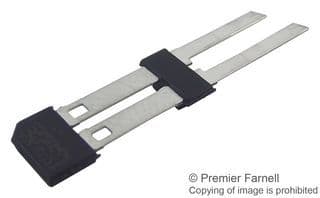

TLE4941CBAMA1

Datasheet

Hall Effect Sensor, 0-20mT Min, 20mT Max, BICMOS, Plastic/Epoxy, Rectangular, Through Hole Mount, PLASTIC, SSO-2

Infineon

TLE4941CBAMA1

Name: TLE4941CBAMA1 Infineon
Brand: Infineon
SKU: TLE4941CBAMA1

Hall Effect Sensor, 0-20mT Min, 20mT Max, BICMOS, Plastic/Epoxy, Rectangular, Through Hole Mount, PLASTIC, SSO-2

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Sponsored by

Sign in to ask questions about the Infineon TLE4941CBAMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.

Widest selection of semiconductors and electronic components in stock and ready to ship ™

Technical Specifications

Infineon TLE4941CBAMA1 technical specifications.

General

Halogen Free	Not Halogen Free
Lead Free	Contains Lead
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Max Supply Current	16.8mA
Max Supply Voltage	20V
Min Supply Voltage	4.5V
Mount	Through Hole
Packaging	Tape and Reel
Radiation Hardening	No
RoHS Compliant	Yes
Series	Automotive, AEC-Q100
