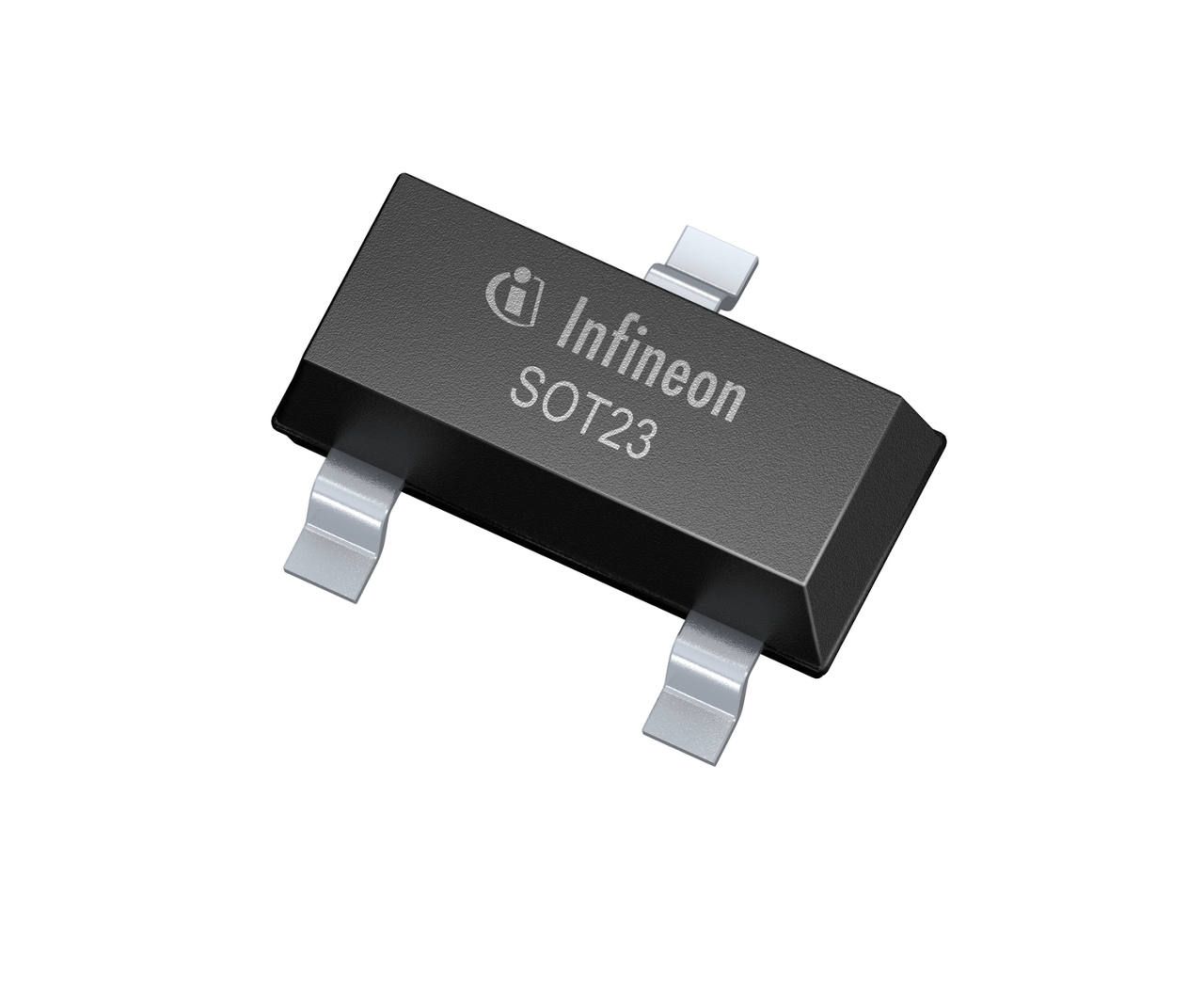

Bipolar latching Hall effect sensor IC for automotive applications. Features a 3-pin SOT-23 package with gull-wing leads for surface mounting. Operates with supply voltages from 3V to 32V, with typical voltages including 3.3V, 5V, 9V, 12V, 15V, 18V, and 24V. Delivers a maximum output current of 25mA. Offers a minimum magnetic release point of -35 Gs and a maximum operating point of 35 Gs, with typical hysteresis of 40 Gs. Extended operating temperature range from -40°C to 170°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TLE4961-1M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Basic Package Type | Lead-Frame SMT |
| Package Family Name | SOT-23 |
| Package/Case | SOT-23 |
| Package Description | Small Outline Transistor |
| Lead Shape | Gull-wing |
| Pin Count | 3 |
| PCB | 3 |
| Package Length (mm) | 2.9 |
| Package Width (mm) | 1.3 |
| Package Height (mm) | 1(Max) |
| Seated Plane Height (mm) | 1 |
| Pin Pitch (mm) | 0.95 |
| Package Weight (g) | 0.01 |
| Package Material | Plastic |
| Mounting | Surface Mount |
| Jedec | TO-236AA |
| Magnetic Type | Bipolar Latch |
| Minimum Magnetic Sensor Release Point | -35Gs |
| Typical Magnetic Sensor Hysteresis | 40Gs |
| Maximum Magnetic Sensor Operating Point | 35Gs |
| Max Operating Supply Voltage | 32V |
| Maximum Output Current | 25mA |
| Min Operating Temperature | -40°C |
| Max Operating Temperature | 170°C |
| Min Operating Supply Voltage | 3V |
| Typical Operating Supply Voltage | 3.3|5|9|12|15|18|24V |
| Cage Code | CG091 |
| EU RoHS | Yes |
| HTS Code | 8542390001 |
| Schedule B | 8542390000 |
| ECCN | EAR99 |
| Automotive | Yes |
| AEC Qualified | Yes |
| RoHS Versions | 2011/65/EU, 2015/863 |
